FEATURES:
White Lined Heavy Weight Coated Packaging Board designed for attractive printing and packaging. Advanced brightness and gloss values for better print results and
high value packaging applications. This Board has 20 grams/m 2 coating on top of high brightness pulp substitute.
USES:

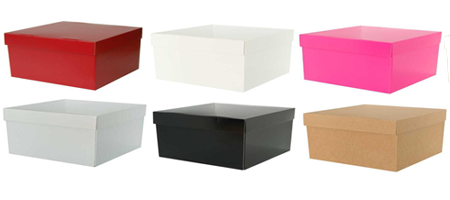

For high demanding Printing and Packaging applications in the Pharmaceutical & FMCG sector, Garments, Textiles and Auto Industry, Match Outer Shells, Consumer
Durables and Non Durables, Point of Sale Display Cartons, Top Liner in Corrugated Boxes, Folding Box Boards – Mono Cartons etc..
BOARD CONSTRUCTION
Coating
Top Coat - 10 g/m2 (Blade Coat)
Pre Coat - 10 g/m2 (Bar Coat)
Size Coat - 2 g/m2
Top Layers
Layer 1 - Bleached White Pulp Substitutes
Layer 2 - White Pre Consumer Waste
Filler Layers
Layer 3 - Finer Recovered Waste
Layers 4, 5, 6 - Recovered Waste Paper
Bottom Layer
Layer 7 - Finer Recovered Waste.
Sizing
Size Coat - 2 g/m2
Substance (GSM)
Caliper (microns)
Bulk (cc/gms)
Stiffness (mN)
MD
CD
200
240
1.2
48
20
230
281
1.22
72
30
250
308
1.23
104
42
285
356
1.25
167
66
300
378
1.26
201
80
320
403
1.26
227
90
350
444
1.27
291
114
380
486
1.28
351
140
400
520
1.3
438
171
450
590
1.31
583
233
Tolerance: ± 3%
Tolerance: ± 5%
Tolerance: ± 5%
Tolerance: ± 10%
Parameter
Unit
Value
Ply bond
J/m2
130 min
Smoothness (Bendsten)
Ml/min
40-80
Brightness
%
78 ( ±1)
Cobb Top (60)
GSM
30-50
Gloss at 75 deg
%
40 ( ± 5)
Moisture
%
6 .0 - 8.0
IGT
Mts/sec
Min 0.7
Tolerance:± 3%
Please note:
The tolerances are based upon 95% confidence limit and on laboratory results of random samples from mill.
The specifications are subject to change without any prior notice.
Brightness value as per ISO Standard shall be 3% higher than that in TAPPI Standard.
Paper board Machine Deckle: 315 cms to 325 cms.
Cobb is measured such that the entire testing is completed in 60 seconds and whatman filter is used for testing.
